OPERABLE WALL SYSTEM
OPERABLE WALL SYSTEM
Product Feature
SPECIAL AND STRENGTH
EASY GLASS Aluminum Alloy Rail System
EASY GLASS 鋁合金路軌系統是依鋁合金標準6063-T6 擠壓成型，並經過銀白色陽極氧化處理。選用鋁的好處在於其能標準成型加上獨特的設計使路軌與路軌之間、屏風與路軌之間完美結合。經陽極氧化的路軌提供了一個寧靜、結實及防鏽的界面給活動屏風運行。根據屏風重量及結構我們提供了一系列的路軌選擇，而每款路軌經過壽命測試證明最少能供活動屏風運行161公里，約15年的使用。
The EASY GLASS ground rail is shaped by the Standard6036-T6 aluminum alloy and is oxidized by silvery white positive pole. The selected aluminum can be made into a standard shape. The unique design ensures perfect combination between rail and rail, and between partition and rail. The oxidized rail provides a serene, solid and rust-proof interface for the running of operable partition. A wide range of rails are for your selection based on the weight and structure of partitions. Every rail has passed the service life test, proving that it can provide a minimum service for operable partitions to run 161 km in approximately 15 years.
#108型路軌/多向式
可負荷每片屏風重量230/kg。
#108 ground rail/multi-direction style Able to bear
weight of 230/kg for each
piece of partition

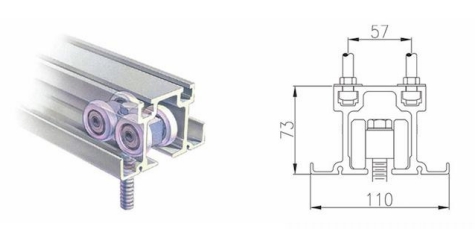

#110型路軌/多向式
可負荷每片屏風重量420/kg。
#110 ground rail/multi-direction style Able to bear
weight of 420/kg for each
piece of partition

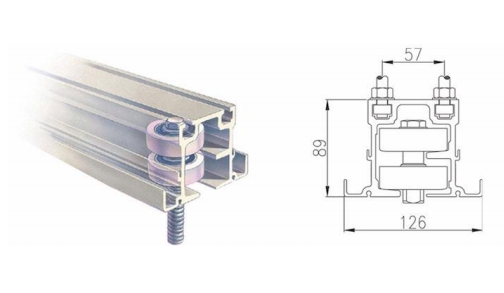

#126型路軌/多向式
可負荷每片屏風重量460/kg。
#126 ground rail/multi-direction style Able to bear
weight of 460/kg for each
piece of partition

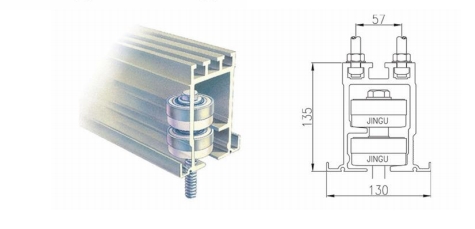

#130型路軌/多向式
可負荷每片屏風重量700/kg。
#130 ground rail/multi-direction style Able to bear
weight of 700/kg for each
piece of partition

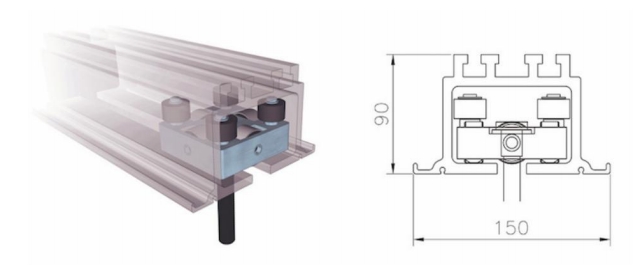

#150型路軌/多向式
可負荷每片屏風重量600/kg。
#150 ground rail/multi-direction style Able to bear
weight of 600/kg for each
piece of partition
EASY GLASS Structrual Installation

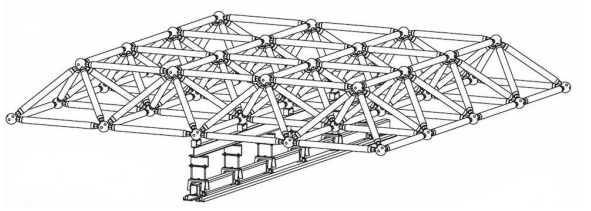

球型網架安裝示意圖
對於球形網架這種複雜的結構,RHEA的安裝技術人員一
樣可以巧妙的運用!
INSTALLATION SKETCH OF THE SPHERICAL RACK;
EASYTECHS technicians can cleverly employ complex structures
such as the spherical rack.

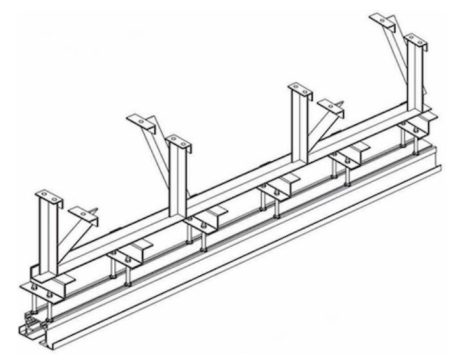

橫梁側邊安裝示意
物體承重不在橫梁底下，可以在梁側借力。
INSTALLATION SKETCH OF BEAM SIDES
The beam sides can be utilized to bear some
weight when the weight of the object is not
below the beam.

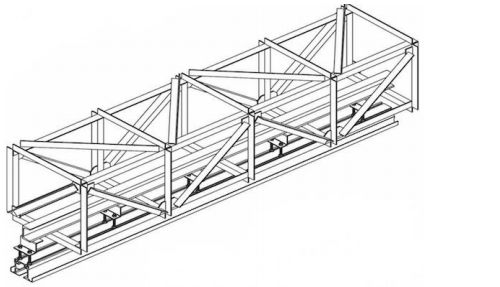

桁架結構安裝示意
當建築結構頂部荷載有限的情況下可使用此方案。
INSTALLATION SKETCH OF THE TRUSS STRUCTURE;
This plan can be used when the weight bearing of the top
of the structure is limited.
樓板底安裝示意
直接在樓板底下打膨脹螺絲，此方案
是最典型也是最常規的安裝方法。
INSTALLATION SKETCH OF PANEL BOTTOM
Using the setscrews in the panel bottom is the
most typical and routine installation plan.

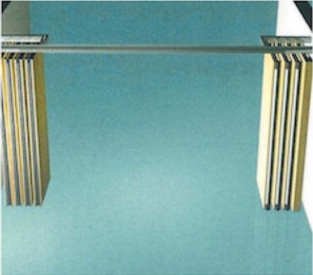

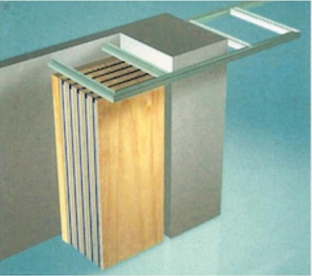

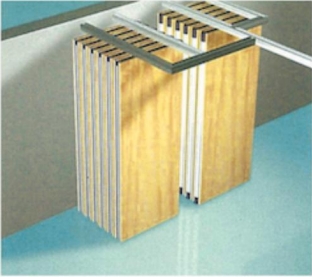

收納方案
Store Path

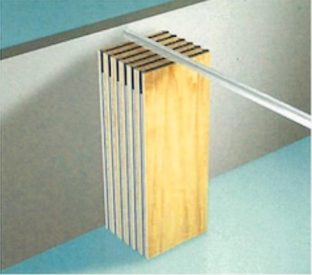

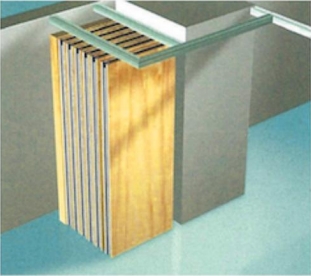

標準活動隔斷收藏位置
EASY GLASS活動隔斷經本公司專業培訓的設計師,用多種最新之計算機計軟件來為客戶進行規劃,每一規劃方案能更科學、更有效地將空間合理化運用
LOCATION TO STORE STANDARD OPERABLE PARTITION EASYTECHS operable partitions are planned via the latest computer software by ourtrained designers. Every plan enables scientific, effective and rational employment of space
Model
PRODUCT DISPLAY

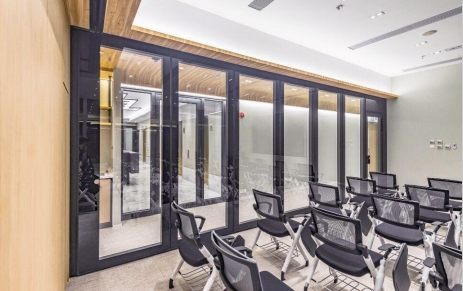

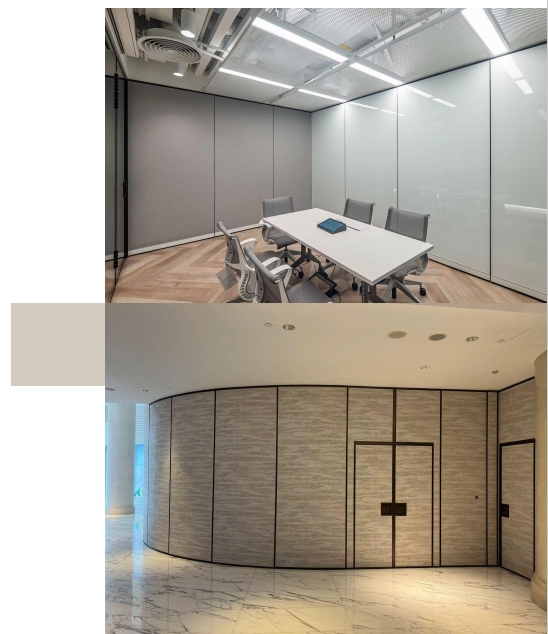

EASY GLASS Model OJ85G Double Glazed
85mm operable wall thickness
Acoustic performance:44dB-48dB
The height can reach 3300mm
Half-automatic type Available
隔斷厚度:85mm
隔音系數:44db-48db
隔斷高度可達3300mm
可選擇半自動功能
雙層鋼化玻璃隱框活動屏風，是目前市場上邊框最窄的一款玻璃屏風，具有 美觀、通透、隔音、空間靈活等優點，可內置百葉，是辦公室、會議室、會 所、商場、酒店、機場等場所的隔斷佳品。
66mm operable wall thickness
Acoustic performance:32dB-36dB
The height can reach 4500mm
隔斷厚度:66mm
隔音系數:32db-36db
隔斷高度可達4500mm
適用於隔音要求一般的酒樓餐廳的包廂、小型會
議室、普通辦公室等。
可適用美術館、博物館、展覽館等臨展場所。
EASY GLASS Model OJ66
備選基面可選用與周邊環境顏色接近的各色布料、細紋皮革或三聚氰胺板。
EASY GLASS Model OJ85
85mm operable wall thickness
Acoustic performance:44dB-48dB
The height can reach 3300mm
Half-automatic type Available
隔斷厚度:85mm
隔音系數:45db-51db
隔斷高度可達6000mm
可選擇半自動功能
廣泛用於隔音要求較高的星級賓館酒店的宴會廳、
多功能廳、大型會議室等。
可適用美術館、博物館、展覽館等臨展場所。

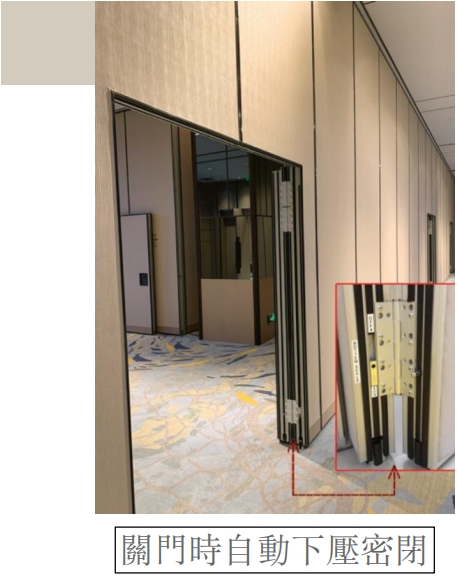

底部配備伸縮式地針和銜接駁口裝置，確保屏風安全性和穩定性活動屏風除了具有分隔空間的功能同時具備隔音之功效，EASY GLASS系列產品別具一格的設計演譯了出色的隔音性能產品，屏風間的金屬扣件緊密結合，有效地阻隔了聲音的傳遞，另外根據不同的要求還可以把基面板作進一步聲學處理(如在基面板上打孔或做縫隙處理)如此可有效的減少聲音的反射。為了在實際裝潢時，產品隔音效果達到最佳狀態，我們建議在布置計劃階段(如聲音通徑、墻面結構連接方式等)請接洽我公司。
The operable partition features the functions of separating space and
sound insulation. The EASY GLASS product series interprets the
outstanding sound insulation effect with its unique design. The close
combination among the metal fasteners between partitions effectively blocks sound transmission. Besides, based on different
requirements, the basic panel can be dealt with further acoustic process,
such as drilling or cracking in the basic panel to effectively reduce sound
reflection. To achieve the optimal sound insulation in actual deco ration,
it is highly advised to contact us during the layout planning period (such
as sound passage, connection pattern of wall structure, etc.)
EASY GLASS Model OJ100
100mm operable wall thickness
Acoustic performance:45dB-53dB
The height can reach 7500mm
Half-automatic type Available
隔斷厚度:100mm
隔音系數:45db-53db
隔斷高度可達7500mm
可選擇半自動功能
廣泛用於大型宴會廳、多功能廳、會展中心、
體育館、禮堂等隔音要求高的大型場所
